3-Channel Heavy Duty Linebacker

Protects Cables and Hoses Up to 2.25"
Outside Diameter
Patented T-Connectors to Extend to Any Length
Reinforced Hinged Lid for Easy Cable Placement
All-Weather Polyurethane Construction
Patented 5-Bar Tread Surface for Maximum Traction
Easy to Transport, Setup, Disassemble, and Store
Ideal for Use in Oil & Gas Applications, Mining, Military, and Other Industrial Environments with Heavy Trucks and Forklifts

HEAVY DUTY LINEBACKER

LINEBACKER® 3-CHANNEL CABLE PROTECTOR with hinged lid provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. Modular interlocking design is ideal for use in oil and gas applications, mining, military, and other industrial environments with heavy trucks and forklifts for cables up to 2.25" tall and 2.25" wide.

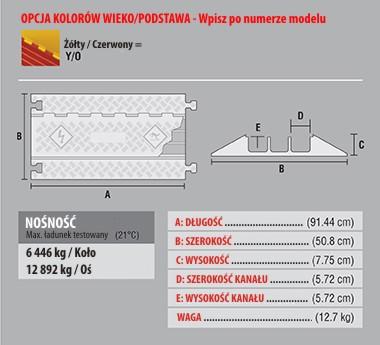

CP3X225 — SPECYFICATIONS

Load Capacity

Max load tested at 21^oC
6,664 / Koło
12,892 kg / Oś

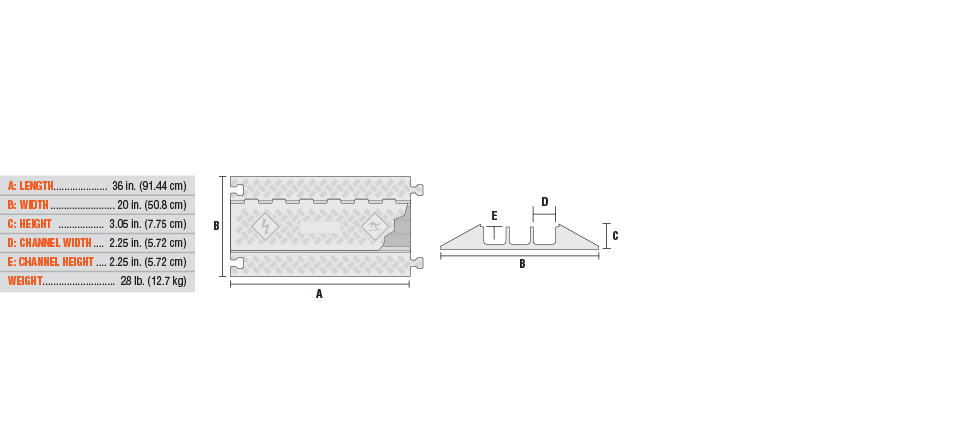

A. Length: (91,44 cm)
B. Width: (50,8 cm)
C. Height: (7,75 cm)
D. Channel width: (5,72 cm)
E. Channel height: (5,72 cm)
F. Weight: (12,7 kg)

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
14,120 lb./Tire (6,446 kg) 28,420 lb./Axle (12,892 kg)

COLOR OPTIONS
Yellow lid with Orange base = Y/O
