5-Channel General Purpose Guard Dog ADA

  • Protects Cables And Hoses Up To 1.325" Outside Dia.
  • Dog Bone Connectors To Extend To Any Desired Length
  • Reinforced Hinged Lid For Easy Cable Placement
  • ADA Accessibility Ramps Built In - No Connectors Needed
  • All-Weather Polyurethane Construction
  • Patented 5-Bar Tread Surface For Maximum Traction
  • Interconnects with standard 5 Channel “Dog Bone” Connector Models
  • Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications
  Checkers

GENERAL PURPOSE GUARD DOG

GUARD DOG® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors.

Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Guard Dog cable protector. This modular interlocking design is available in lightweight 18" sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

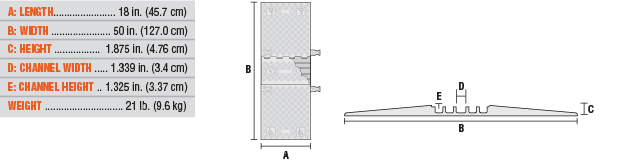

GD5X125-ADA — SPECYFIKACJE

Specyfication data

5-Channel General Purpose Guard Dog ADA


LOAD CAPACITY — Max load tested at 70°F (21° C)
10,500 lb./Tire (4,763 kg) 21,000 lb./Axle (9,526 kg)

COLOR OPTIONS

  • Orange lid with blue base = O/BLU
  • Orange lid with black base = O/B
  • Black lid with black base = B/B
