3-Channel Guard Dog Low Profile ADA

Protects Cables and Hoses Up to .75" Outside Dia.
Dog-Bone Connectors to Extend to Any
Desired Length
Reinforced Hinged Lid for Easy Cable Placement
With Built-In ADA/DDA Accessibility Ramps
Patented 5-Bar Tread Surface for Maximum Traction
Modular Interlocking Design for Easy Setup

GENERAL PURPOSE GUARD DOG

GUARD DOG® LOW PROFILE models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment for cables up to 0.75" tall and 1.25" wide. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps.

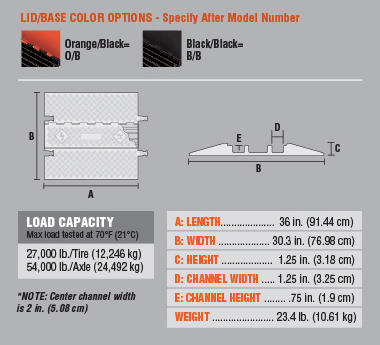

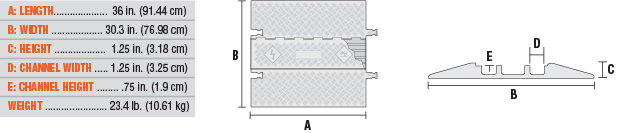

GD3x75 — SPECIFICATIONS

Specyfication data

LOAD CAPACITY — Max load tested at 70°F (21° C)
27,000 lb./Tire (12,246 kg) 54,000 lb./Axle (24,492 kg)

COLOR OPTIONS

Orange lid with black base = O/B
Black lid with black base = B/B
