1-Channel Guard Dog Low Profile

  • Protects cables and hoses up to .75" outside dia.
  • Dog-Bone Connectors to extend to any
  • desired length
  • Reinforced hinged lid for easy cable placement
  • With standard ramps
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup
  Checkers

GENERAL PURPOSE GUARD DOG

GUARD DOG® LOW PROFILE models are the most compact top-loading cable protectors on the market, fitting cables up to 0.75" tall and 2.25" wide. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic while still maintaining a high load-bearing capacity for heavy equipment. The Low Profile models are available with your choice of standard or ADA/DDA compliant ramps.

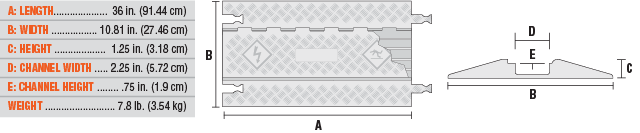

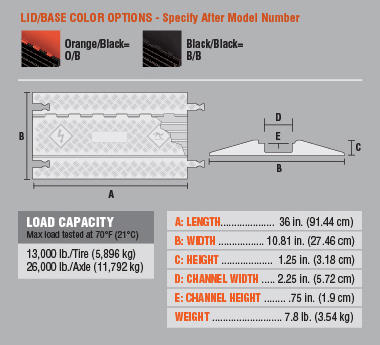

GD1x75-ST — SPECIFICATIONS

Specyfication data

1-Channel Guard Dog Low Profile


LOAD CAPACITY — Max load tested at 70°F (21° C)
13,000 lb./Tire (5,896 kg) 26,000 lb./Axle (11,792 kg)

COLOR OPTIONS

  • Orange lid with black base = O/B
  • Black lid with black base = B/B
