Duplicate of LED Light Modules

  • 3-Way Operation: Steady On, Flashing and Off
  • Flashes per minute: 500
  • Overall Size: 5 5/8”W x 2 7/16”H x 1 3/16”D
  • Current Draw: .25 amps
  • Operates from 9 to 28 volts
  • Enclosure is NEMA 4 rated
  • 3 Watts, up to 600 Lumens of light output
  • Available in amber, red, blue, green, or white
  Checkers

LED LIGHT MODULES

Each CHECKERS LED LIGHT MODULE contains it’s own intelligent control circuitry. Multiple light modules can be flashed on a vehicle lighting system without a controller. By applying power to the string of lights, each light will be able to flash in several patterns set by a master light on the string. Light modules can also be connected to a CHECKERS master controller to make arrow sticks or arrow boards, or other special light control requests. The units have a clear polycarbonate lens and a die cast aluminum base.

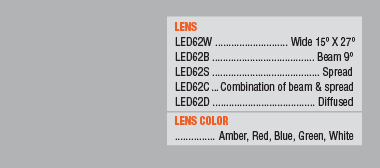

LED62W, LED62B, LED62S, LED62C, LED62D — SPECIFICATIONS

Specyfication data
